PILOT E-LITE TECHNOLOGY LIMITED

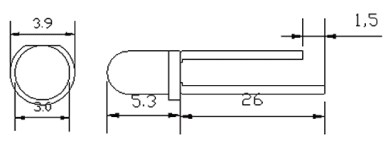

Part Number	Chip Materia	Emitting Color	Forward Voltage VF:(V)		Dominant Wavelength D:(nm)		Luminous Intensity IV:(mcd)		Angle
			Test condition : IF=20mA
			MIN	MAX	MIN	MAX	MIN	MAX
A034SWCLN	InGaN	White	2.8	3.6	_	_	400	7000	25-60
A034SPCLN	InGaN	Purple	2.8	3.6	400	430	50	800
A034SBCLN	InGaN	Blue	2.8	3.6	455	485	200	4000
A034SGCLN	InGaN	Green	2.8	3.6	500	540	300	10000
A034SYCLN	AIGaInP	Yellow	1.8	2.3	570	595	200	3000
A034AYCLN	AIGaInP	Amber	1.8	2.3	600	615	100	2000
A034SRCLN	AIGaInP	Red	1.8	2.3	620	645	300	5000

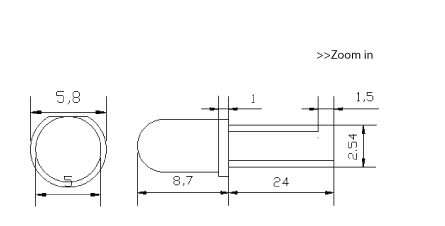

Part Number	Chip Materia	Emitting Color	Forward Voltage VF:(V)		Dominant Wavelength D:(nm)		Luminous Intensity IV:(mcd)		Angle
			Test condition : IF=20mA
			MIN	MAX	MIN	MAX	MIN	MAX
A054SWCLN	InGaN	White	2.8	3.6	_	_	1000	22000	15-60
A054SPCLN	InGaN	Purple	2.8	3.6	400	430	50	800
A054SBCLN	InGaN	Blue	2.8	3.6	455	485	200	10000
A054SGCLN	InGaN	Green	2.8	3.6	500	540	500	25000
A054SYCLN	AIGaInP	Yellow	1.8	2.3	570	595	200	8000
A054AYCLN	AIGaInP	Amber	1.8	2.3	600	615	300	9000
A054SRCLN	AIGaInP	Red	1.8	2.3	620	645	1000	8000

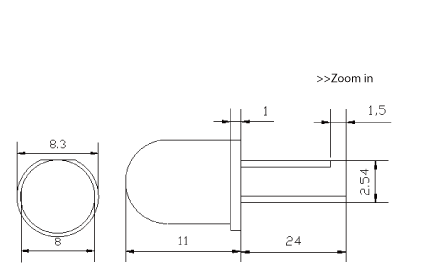

Part Number	Chip Materia	Emitting Color	Forward Voltage VF:(V)		Dominant Wavelength D:(nm)		Luminous Intensity IV:(mcd)		Angle
			Test condition : IF=20mA
			MIN	MAX	MIN	MAX	MIN	MAX
A084SWCLN	InGaN	White	2.8	3.6	_	_	2000	22000	25-60
A084SBCLN	InGaN	Blue	2.8	3.6	455	485	300	1500
A084SGCLN	InGaN	Green	2.8	3.6	500	540	800	22000
A084SYCLN	AIGaInP	Yellow	1.8	2.3	570	595	300	12000
A084AYCLN	AIGaInP	Amber	1.8	2.3	600	615	300	12000
A084SRCLN	AIGaInP	Red	1.8	2.3	620	645	300	12000
