Part
Number
Chip
Materia
Emitting Color
Forward Voltage VF:(V)
Dominant Wavelength
D:(nm)
Luminous Intensity
IV:(mcd)
Angle
Test condition : IF=20mA
MIN
MAX
MIN
MAX
MIN
MAX

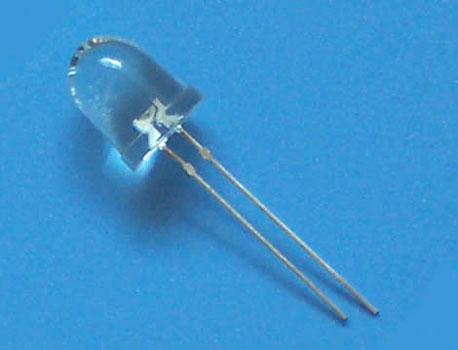

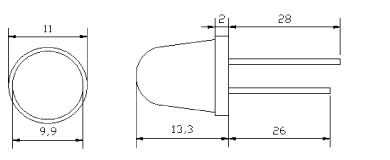

C104SWCLN
InGaN
White
2.8
3.6
_
_
2000
22000
8-60
C104SBCLN
InGaN
Blue
2.8
3.6
455
485
300
20000
C104SGCLN
InGaN
Green
2.8
3.6
500
540
2000
25000
C104SYCLN
AIGaInP
Yellow
1.8
2.3
570
595
300
15000
C104AYCLN
AIGaInP
Amber
1.8
2.3
600
615
300
15000
C104SRCLN
AIGaInP
Red
1.8
2.3
620
645
300
20000





Part
Number
Chip
Materia
Emitting Color
Forward Voltage VF:(V)
Dominant Wavelength
D:(nm)
Luminous Intensity
IV:(mcd)
Angle
Test condition : IF=20mA
MIN
MAX
MIN
MAX
MIN
MAX

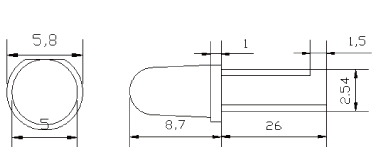

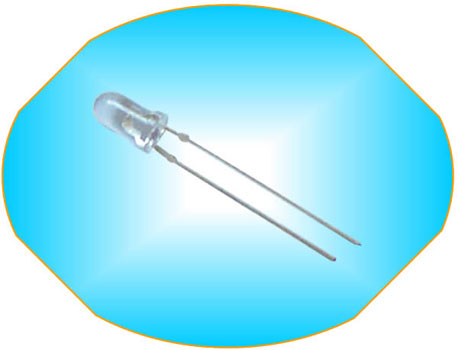

C054SWCLN
InGaN
White
2.8
3.6
_
_
500
20000
15-60
C054SPCLN
InGaN
Purple
2.8
3.6
400
430
50
800
C054SBCLN
InGaN
Blue
2.8
3.6
455
485
200
8000
C054SGCLN
AIGaInP
Green
2.8
3.6
500
540
800
22000
C054SYCLN
AIGaInP
Yellow
1.8
2.3
570
595
1000
15000
C054AYCLN
AIGaInP
Amber
1.8
2.3
600
615
1000
12000
C054SRCLN
AIGaInP
Red
1.8
2.3
620
645
1000
15000
