Part
Number
Chip
Materia
Emitting Color
Forward Voltage VF:(V)
Dominant Wavelength
D:(nm)
Luminous Intensity
IV:(mcd)
Angle
Test condition : IF=20mA
MIN
MAX
MIN
MAX
MIN
MAX

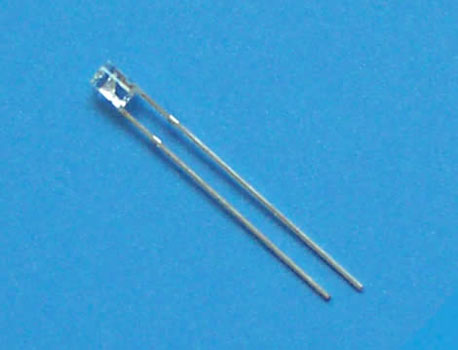

F034SWCLN
InGaN
White
2.8
3.6
_
_
50
500
100-160
F034SBCLN
InGaN
Blue
2.8
3.6
455
485
50
400
F034SGCLN
InGaN
Green
2.8
3.6
500
540
100
700
F034SYCLN
AIGaInP
Yellow
1.8
2.3
570
595
50
400
F034AYCLN
AIGaInP
Amber
1.8
2.3
600
615
50
400
F034SRCLN
AIGaInP
Red
1.8
2.3
620
645
50
700


Part
Number
Chip
Materia
Emitting Color
Forward Voltage VF:(V)
Dominant Wavelength
D:(nm)
Luminous Intensity
IV:(mcd)
Angle
Test condition : IF=20mA
MIN
MAX
MIN
MAX
MIN
MAX

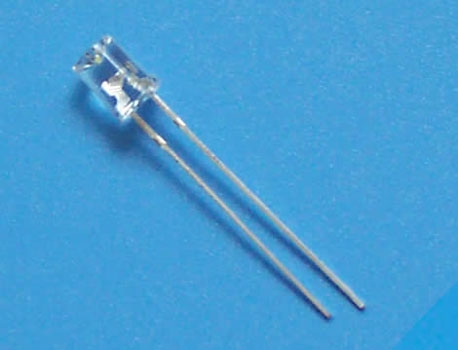

F054SWCLN
InGaN
White
2.8
3.6
_
_
100
1500
100-160
F054SBCLN
InGaN
Blue
2.8
3.6
455
485
100
800
F054SGCLN
InGaN
Green
2.8
3.6
500
540
100
1500
F054SYCLN
AIGaInP
Yellow
1.8
2.3
570
595
100
800
F054AYCLN
AIGaInP
Amber
1.8
2.3
600
615
100
800
F054SRCLN
AIGaInP
Red
1.8
2.3
620
645
100
1000
